VERTICAL OPENING WITH SPRING OPERATION
SANREMO
DESCRIPTION
Sanremo is the typical vertical spring roll-up insect screen:
- easy to use, adaptable in narrow spaces and reliable over time
- practical for the windows, thanks to the bottom rail, fully usable for the insect screen’s release
- smart, thanks to the spring, which allows to always have the tensioning of the net
FEATURES
Vertical friction spring roll-up insect screen, made up of:
– Headbox profile in extruded Aluminium, in three possible sizes, with powder coated finish.
– Roller profile in extruded Aluminium, with a diameter of 22 or 26 mm (with stiffening ribs).
– Guides profile in extruded Aluminium, with powder coated finish.
– Pull rod profile in extruded Aluminium, with powder coated finish and brush seal.
– End plates, sliding slides and bottom hooks in reinforced PA6 nylon.
– Bushings for the PE pipe’s sliding.
– Stainless steel spring with external anti-noise roller.
– Standard gray PVC-coated fiberglass net, side heat-sealed with windproof buttons.
CONFIGURATION EXAMPLES

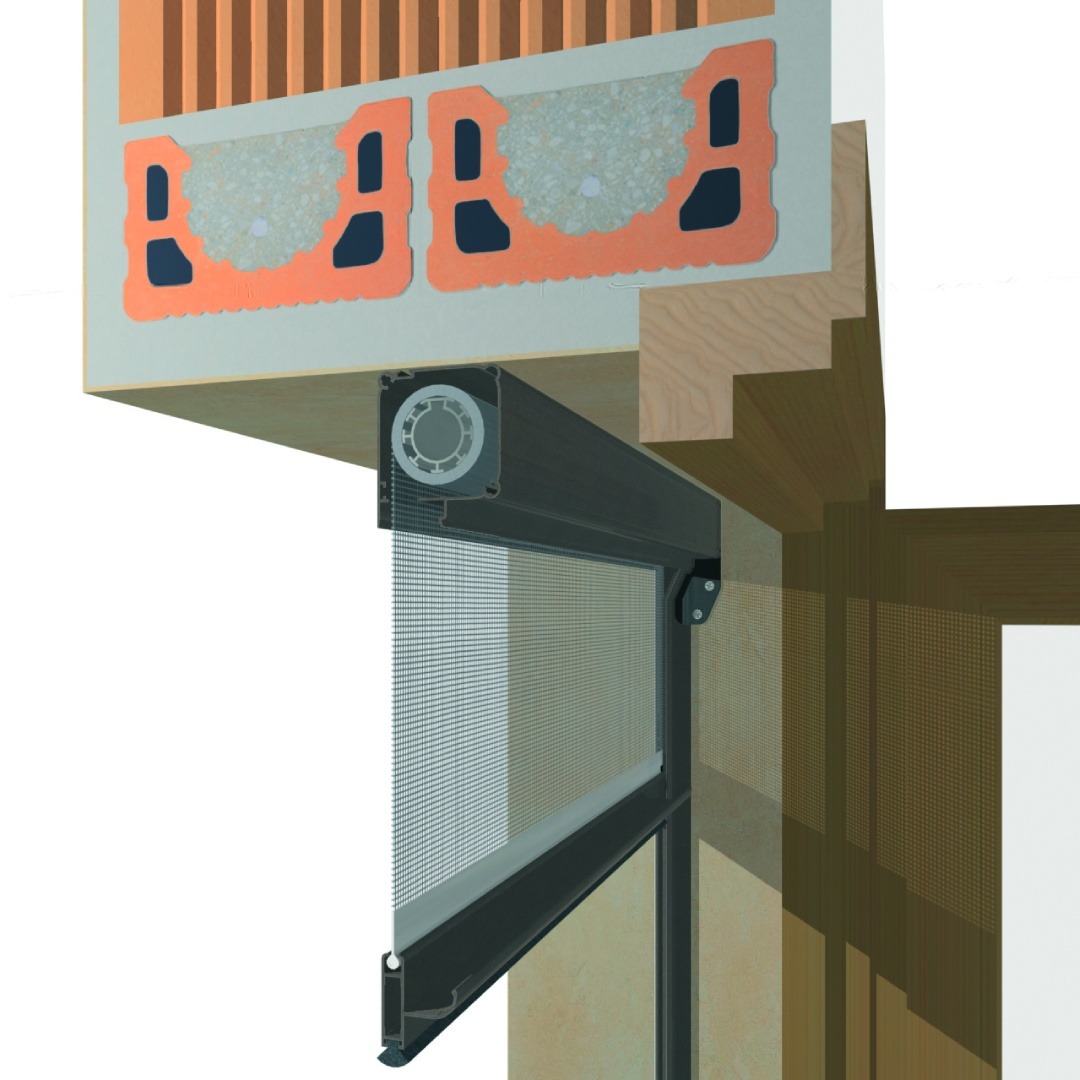

Standard configuration

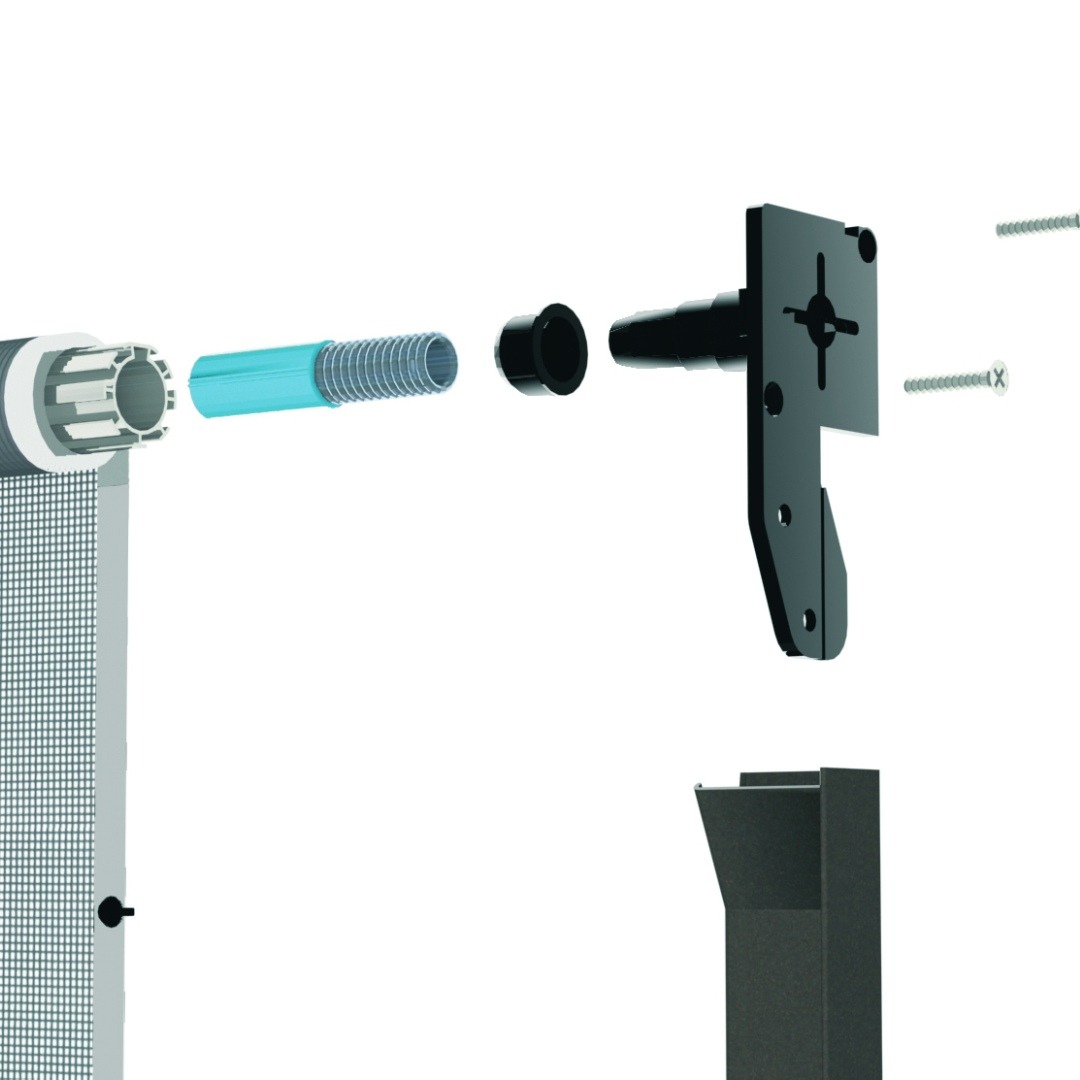

Breaking device application for spring operation

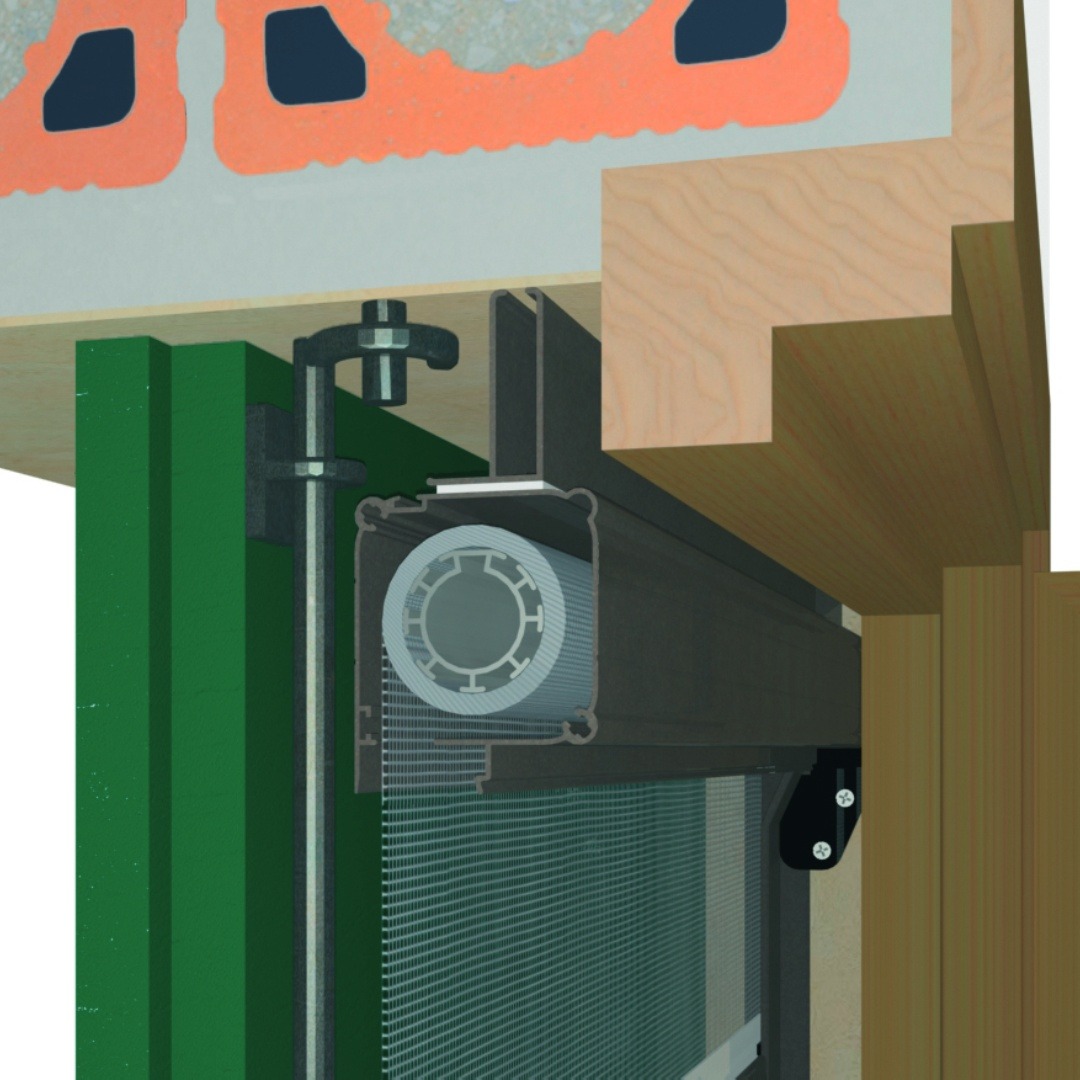

Special lowering tool for balcony
NOTES
The contained information in this page may be imprecise because of possible technical modifications made after realization. The manufacturer reserves the right to make technical modifications without advance notice. Before making orders consult your manufacturer or retailer trusted. The roller blind is designed for the sun protection of the space where it is located. Every other use is inappropriate and dangerous. Marinello Tende cannot be considered responsible for possible damages caused by improper, erroneous and unreasonable use. The roller blind must be installed perpendicular to the horizontal area. When the danger of icing is present the roller blind cannot be operated, in case of strong wind it is necessary to wrap up the roller blind. The fabric can have folds that do not influence the proper functioning of the roller blind.
