SIDE OPENING WITH SPRING OPERATION

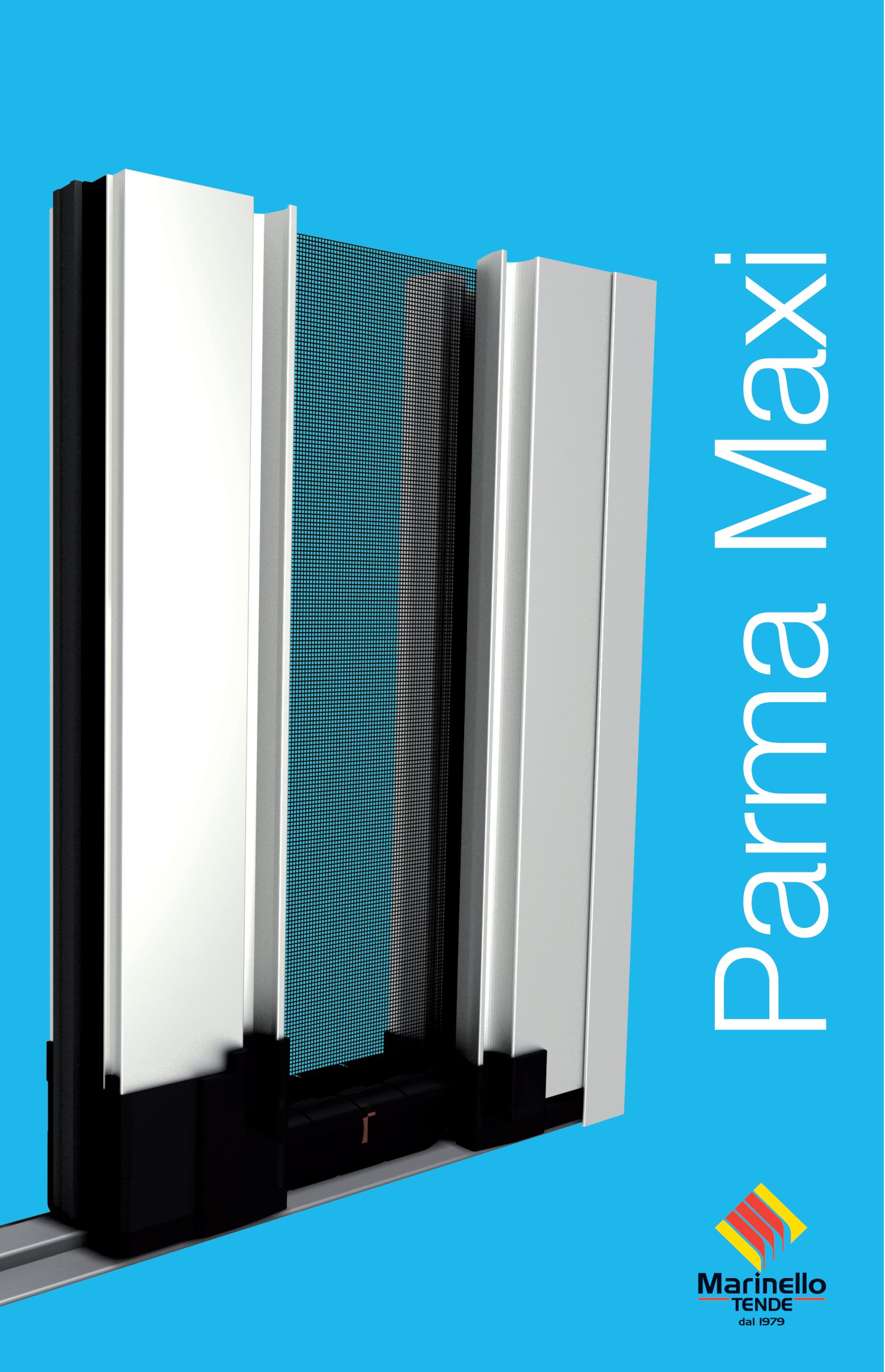

PARMA MAXI
DESCRIPTION
Parma Maxi is the ideal solution for side roll-up insect screens:
- comfortable to use,
because it allows one-hand operation, with the body in natural position - for large sizes,
the double headbox allows to protect a surface greater than 9,5 m2 - the system is pre-assembled,
it quickly connects/disconnects and the closure is guaranteed by the magnetic profile
FEATURES
Side friction spring roll-up insect screen, made up of:
– Headbox profile in extruded Aluminium, with powder-coated finish.
– Pull rod profile in extruded Aluminium, with powder-coated finish, with handle and magnetic strip to guarantee a secure closing.
– Roller profile in extruded Aluminium, with stiffening ribs.
– Extruded Aluminium top guide profile, with powder-coated finish and windproof brush seals.
– Retractable lower/upper scorpion guides made of plastic tracks, with 5 mm-high ground guide and double-sided tape for fixing.
– Side “U” profiles in extruded Aluminium, with powder-coated finishing and, on one side, the closing magnet, on the other one, special plastic hooks for fixing the headbox.
– End plates and caps in reinforced PA6 Nylon.
– Stainless steel spring.
– Fiberglass or polypropylene net (based on color and availability).
NOTES
The contained information in this page may be imprecise because of possible technical modifications made after realization. The manufacturer reserves the right to make technical modifications without advance notice. Before making orders consult your manufacturer or retailer trusted. The roller blind is designed for the sun protection of the space where it is located. Every other use is inappropriate and dangerous. Marinello Tende cannot be considered responsible for possible damages caused by improper, erroneous and unreasonable use. The roller blind must be installed perpendicular to the horizontal area. When the danger of icing is present the roller blind cannot be operated, in case of strong wind it is necessary to wrap up the roller blind. The fabric can have folds that do not influence the proper functioning of the roller blind.
