VERTICAL OPENING WITH CHAIN OPERATION
FIRENZE (Nassau 70 chain-operated, with net)
DESCRIPTION
Firenze (or Nassau 70 chain-operated, with net) is the insect screen that allows to obtain large dimensions, thanks to the zip guides:
- resistant, with the zip guides, it is the ideal insect screen for handling big gusts of wind
- compact, the 70 mm headbox allows its installation even in confined spaces
- smart, thanks to the double operation, which allows to operate on both sides
FEATURES
Vertical chain-operated roll-up insect screen, made up of:
– Headbox profile in extruded Aluminium, with powder coated finish.
– Roller profile in extruded Aluminium, diameter 43 or 48 mm (depending on model and dimension).
– Zip guides profile in extruded Aluminium, with powder coated finish, made of a fixed and a mobile part (removable), with internal PVC guide.

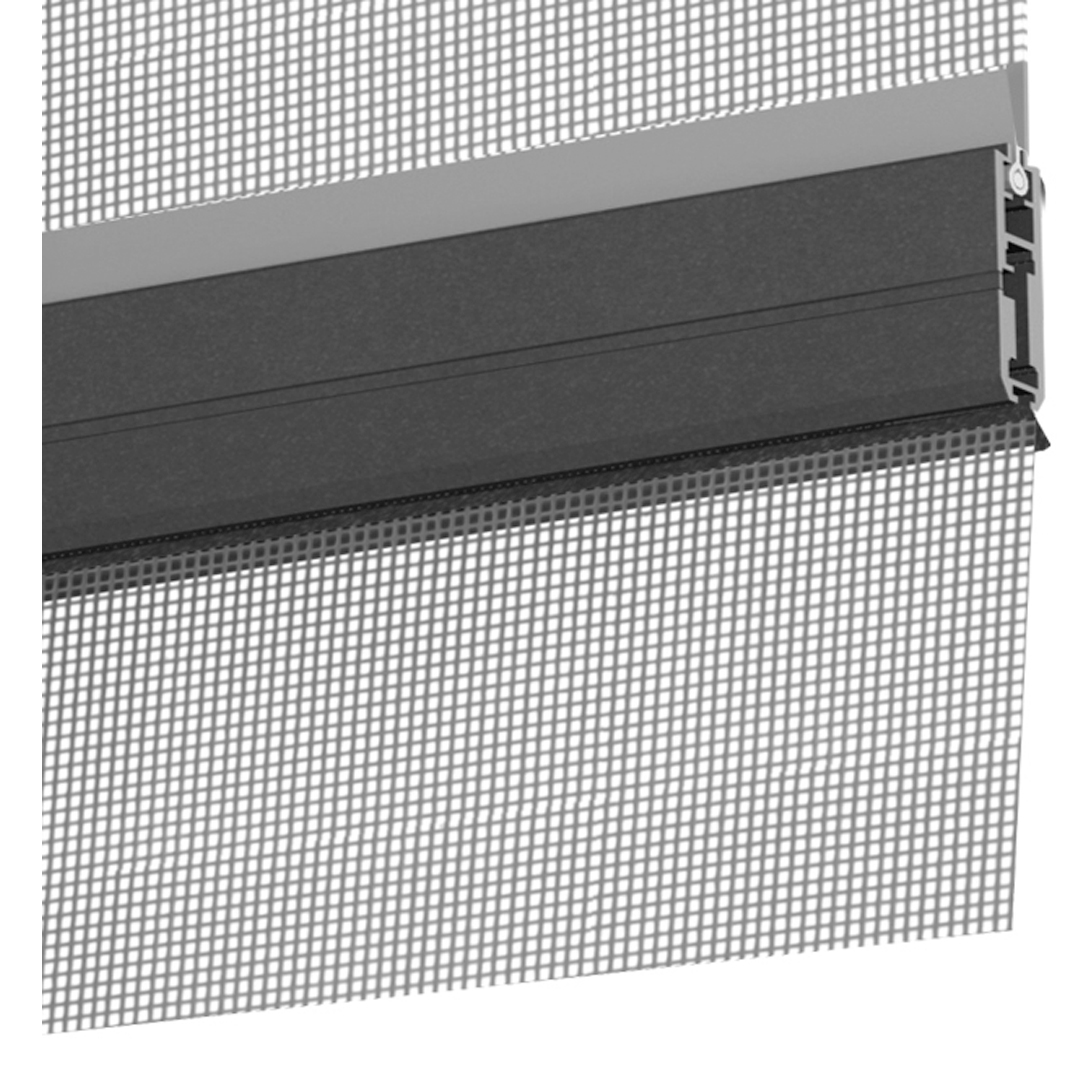

– Bottom rail profile in extruded Aluminium with powder coated finish and brush seal.
– End plates with the possibility of lateral wall fixing.
– End caps with sliding slides in PA6 nylon
– Standard gray PVC-coated fiberglass net, side heat-sealed with zip windproof system.
CONFIGURATION EXAMPLES
Standard configuration

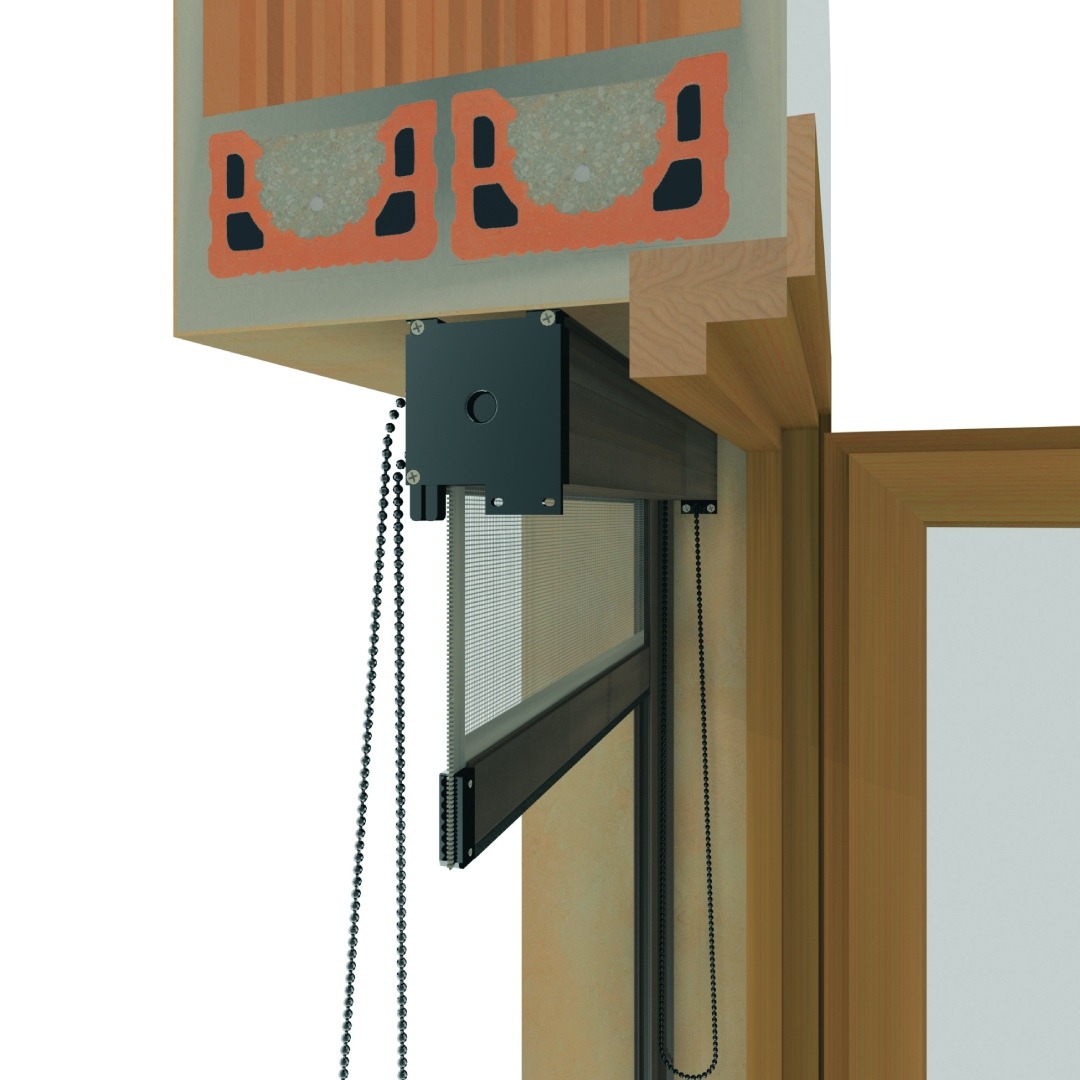

Dual control system

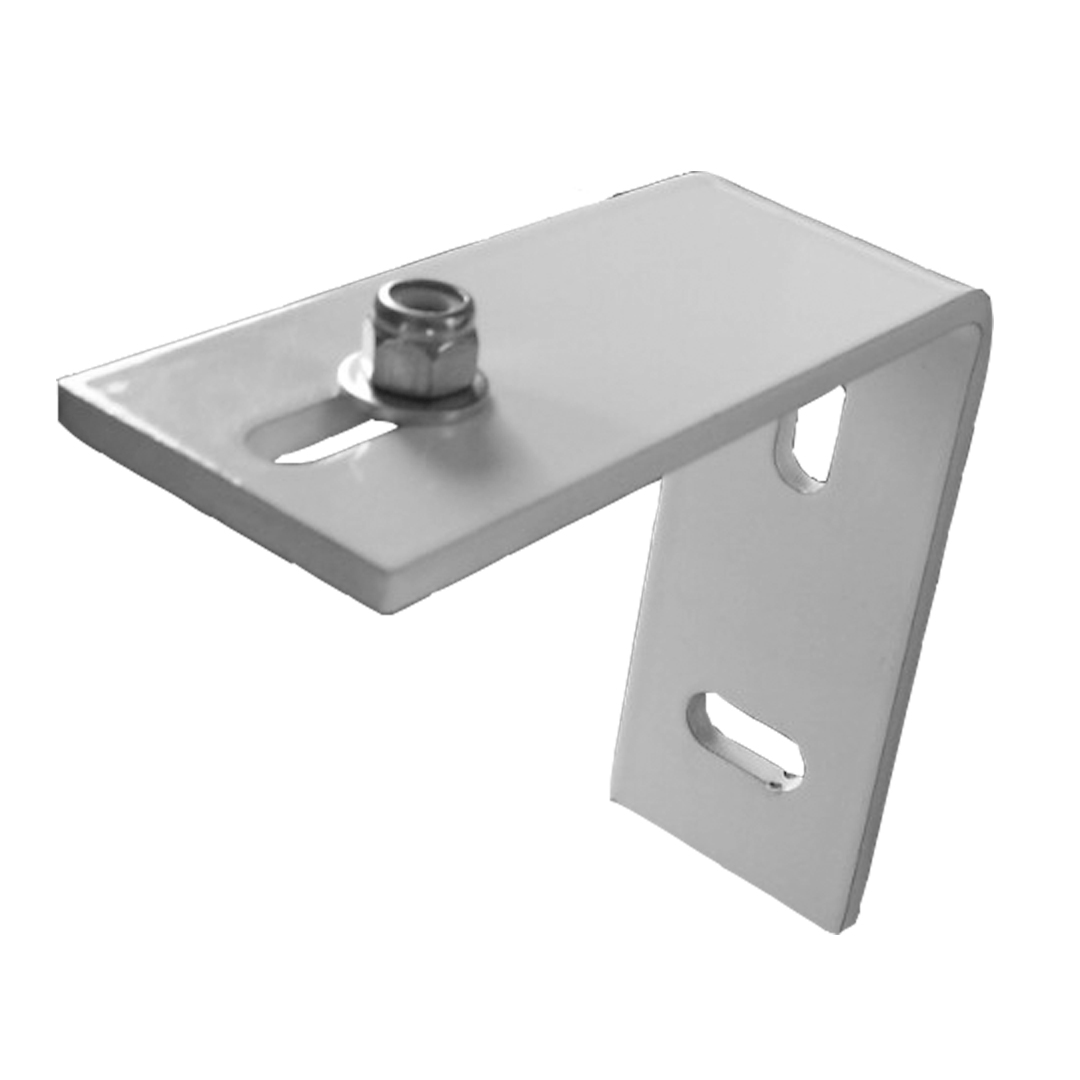

Bracket for wall mounting
Protective net
NOTES
The contained information in this page may be imprecise because of possible technical modifications made after realization. The manufacturer reserves the right to make technical modifications without advance notice. Before making orders consult your manufacturer or retailer trusted. The roller blind is designed for the sun protection of the space where it is located. Every other use is inappropriate and dangerous. Marinello Tende cannot be considered responsible for possible damages caused by improper, erroneous and unreasonable use. The roller blind must be installed perpendicular to the horizontal area. When the danger of icing is present the roller blind cannot be operated, in case of strong wind it is necessary to wrap up the roller blind. The fabric can have folds that do not influence the proper functioning of the roller blind.
